Light Hydrocarbon Analyser
Custom-configured GC solutions for accurate light hydrocarbon analysis from C1 to C20 – supporting refinery, energy and research applications with high sensitivity and flexibility.
Ready to Elevate Your Analysis?
High-Precision Light Hydrocarbon Analysis
Accurate measurement of light hydrocarbons is essential for refineries, natural gas and biogas production, renewable energy research, catalyst screening and many other industrial applications. Detailed information on hydrocarbon concentration and distribution is critical for process control, product valuation and research & development activities.

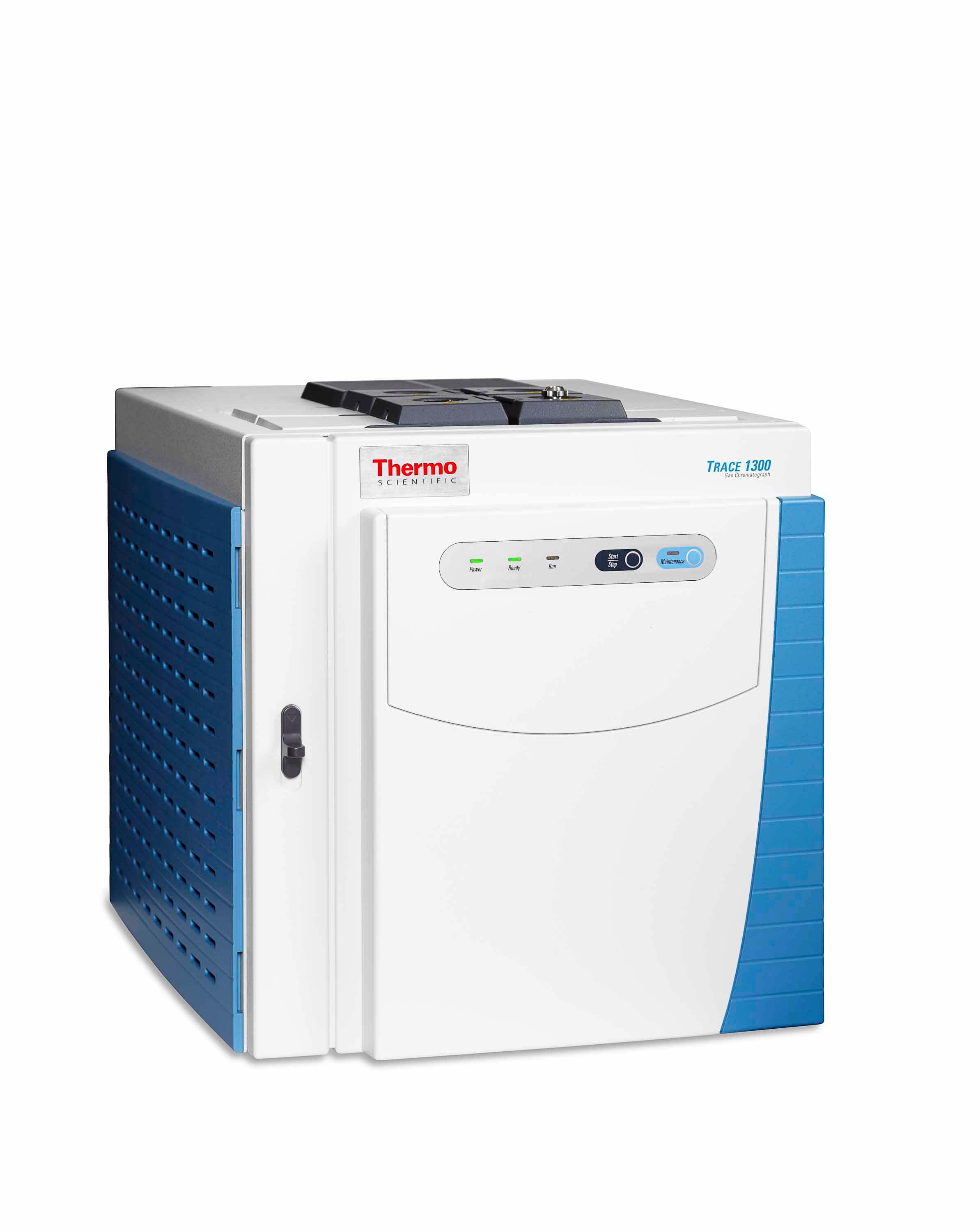

The GAS Light Hydrocarbon Analyser provides custom-configured GC solutions for the analysis of light hydrocarbons ranging from C1 up to C20 and higher. Based on proven GC technology, the analyser supports both benchtop Thermo Trace GC1600 and fast CompactGC4.0 platforms. Modular injectors, detector options and expandable channel configurations ensure robust performance, excellent repeatability and optimal return on investment across a wide range of applications.
Applications
- Supported methods:
ASTM D2163, D2712, D2593, D2820, D4424, ISO 7941 - Light Hydrocarbon Composition Analysis (C1–C10)
Detailed analysis of methane through higher hydrocarbons using capillary or packed columns with FID detection.
- Extended Hydrocarbon Analysis (Up to C20+)
Quantify heavier hydrocarbons using thick-film non-polar columns with optional C6+ backflush.
- Refinery and Petrochemical Process Monitoring
Support process optimisation and feedstock evaluation in refinery and petrochemical environments.
- Natural Gas, Biogas and Renewable Energy Research
Analyse hydrocarbon distribution for production monitoring and research applications.
- Gas and Liquefied Sample Analysis
Support gas, LPG and liquid hydrocarbon samples using GSV, Vaporiser, LSV and Sample Securitiser options.
Benefits
- Wide Analytical Range
Configurable for detailed C1–C5 isomer separation, extended C1–C20 analysis, or heavier hydrocarbons.
- High Sensitivity and Linearity
FID detection delivers detection limits below 100 ppb with excellent linearity over seven decades.
- Flexible Injection Techniques
GSV for gas samples, Vaporiser for liquid-to-gas injection, LSV with Sample Securitiser for liquid LPG analysis, or SSL (Split Splitless Injector) for liquid samples.
- Expandable and Modular Design
Add channels for permanent gases, sulphur components or other compound groups within one analyser.
- Fast and Reliable Performance
Typical analysis times from 2 to 15 minutes with repeatability better than 1% RSD.
Downloads
Access brochures, technical datasheets, application notes, and software updates
Light Hydrocarbon Analyser Datasheet
Explore analyser configuration, injection options, detector selection and performance data for light hydrocarbon analysis using Thermo Trace GC1600 or CompactGC4.0 platforms.
